Door Frames Roll Forming Machine Galvanized Steel Sheet Rolling Forming Machine

Name: Door Frames Roll Forming Machine Galvanized Steel Sheet Rolling Forming Machine
Brand: Shenghong
Price: 1 USD

Quality Door Frames Roll Forming Machine Galvanized Steel Sheet Rolling Forming Machine wholesale

Brand Name : Shenghong

Model Number : SJG160215-06

Certification : CE ISO SGS

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T

Supply Ability : 25 sets / month

Delivery Time : 45 Days

Packaging Details : container

Material type : Cold rolled Steel/galvanized steel sheet

machine type : Door frame roll forming machine

Line speed : Adjusted by Frequency Inverter

Run-out table mode : roller style

Products : metal door or window frames, reinforced, fire stop doors, etc

Feature : doorframe profile surface can be obtained after roll-formed, smooth and beautiful without any scratch.

Contact Now

Door Frame Roll Forming Machine with Galvanized Steel Sheet

Door Frame Roll Forming Machine Introduction

Door frame roll forming machine is designed to roll form a thickness scope of raw material from 0.4mm to 1.5mm for . The whole line consists of hydraulic uncoiller, straightening, servo feeding, punching, roll forming, fly shearing, run-out table, hydraulic station and electrical controller. It is able to produce high-quality door frames used in many fields.

General Description

Door frame roll forming machine adopts hydraulic station with accumulator and automatic PLC controller to generate a fast punching and shearing speed.
When in automatic mode running, the product speeds can maximum reach to 20m/min with a stable and reliable performance.
Door frame roll forming machine is equipped with a double cantilever rack which is useful to improve the efficiency when changing steel coils.
The working flow is as follows: Decoilling-Leveling-Punching-Roll forming-Shearing-Run-out table.
The machine can be designed and manufactured customized.

Working flow:

Decoilling------Levelling------Punching------Roll forming------Shearing------Run------out table

Technical Specifications for Door Frame Roll Forming Machine

Raw material	Item	Parameter	Remark
	Material type	Cold rolled Steel/galvanized steel sheet	Special material shall be tested before finalization
	Thickness	0.6-1.0mm	Big range of thickness may cause forming dimension tolerance
	Yield strength	Q235	-
Production	Profiling section	As per customer's requirement	The basic element for quotation
Machine material	Roller material	Gr12	HRC58-62
	Shaft material	40Cr	-
	Rolling station wall material	QT470	-
	Feeding rollers	9Cr2Mo or GCr15	HRC-55-60
	Shearing blade material	Cr12Mov	HRC-58-62
	Punching die	Cr12Mov	HRC-58-62
Machine power requested	Decoiller	1.1KW	For three tons
	Leveling	3KW	-
	Servo feeding	3 KW	Tolerance ±0.15mm
	Roll forming	11KW	-
machine speed	linear speed	40m/min	-
Forming stations	Quantity of rolling station	14 stands+2 side roller	Cassette design is advised
Pressing	Press	Depend on hole size	Interchangeable die
Transmission	-	-	Gear box or chain
Straightening	Roller straightening	4 rollers	-
Shearing	fly shearing	-	Precision±1.5mm/6000mm
Product supporter	Discharging table	6meters/9meters/11.8meters	As per customer's requirement
Hydraulic system	Valve and pump	-	Brand can be optional
Controller system	PLC	-	Mitsubishi or same level
Coil car	Coil car	3t/5t	option

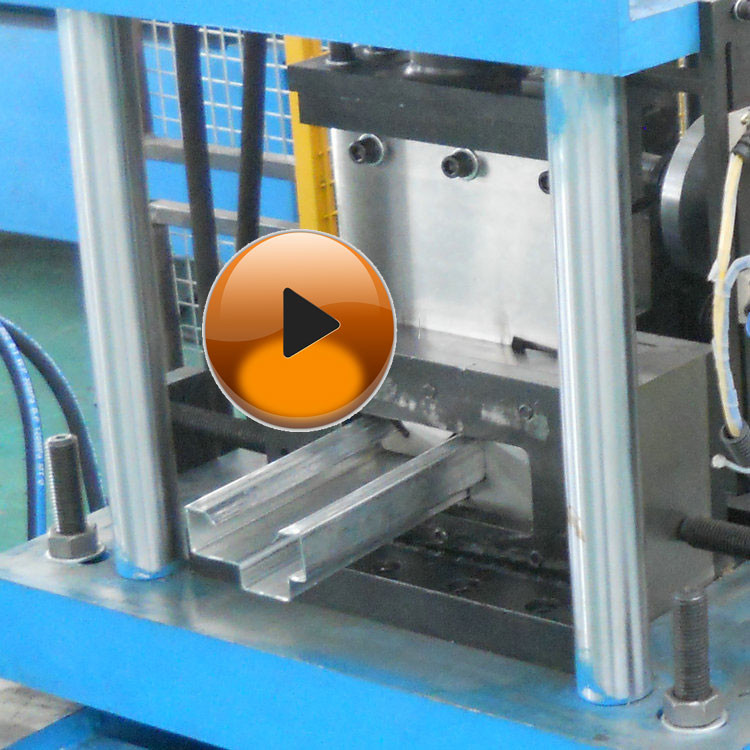

Click on the bellow picture to see the video:

Machine photos

Door Frames Roll Forming Machine Galvanized Steel Sheet Rolling Forming Machine
